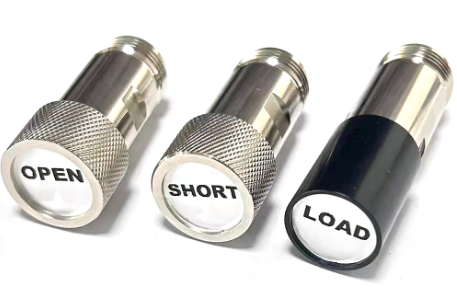

| Type N Calibration Kit |  |
Frequency: DC - 6 GHz Impedance: 50 ohm OPEN: 0.85 degree @ 4.5 GHz SHORT: 0.85 degree @ 4.5 GHz VSWR: Load<1.035@4 GHz, <1.075@6 GHz |
Conductor: Beryllium Copper, Gold plated Insulator: PEI Body: Brass, Ni plated |
| SMA Calibration Kit |  |
Frequency: DC - 9 GHz Impedance: 50 ohm OPEN: 0.85 degree @ 4.5 GHz, 1.5degree @ 9 GHz SHORT: 0.85 degree @ 4.5 GHz, 1.5degree @ 9 GHz VSWR: Load<1.055@6 GHz, <1.075@9 GHz |
Conductor: Beryllium Copper, Gold plated Insulator: PEI Body: Brass, Gold plated |
| SMA Calibration Kit |  |
Frequency: DC - 9 GHz Impedance: 50 ohm OPEN: 0.85 degree @ 4.5 GHz, 1.5degree @ 9 GHz SHORT: 0.85 degree @ 4.5 GHz, 1.5degree @ 9 GHz VSWR: Load<1.055@6 GHz, <1.075@9 GHz |
Conductor: Beryllium Copper, Gold plated Insulator: PEI Body: Brass, Gold plated |
